Material | Carbon Steel SS304 SS316 |
Finish | |
Standard | |
Size | 21 to 219mm |

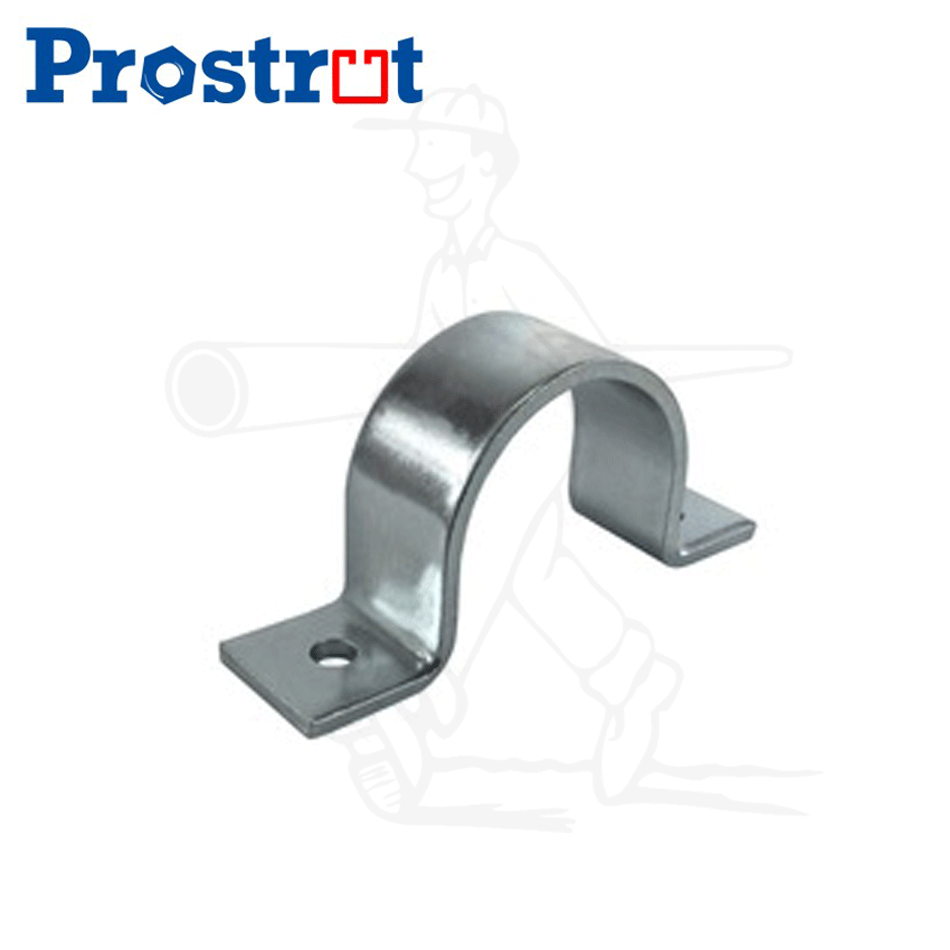

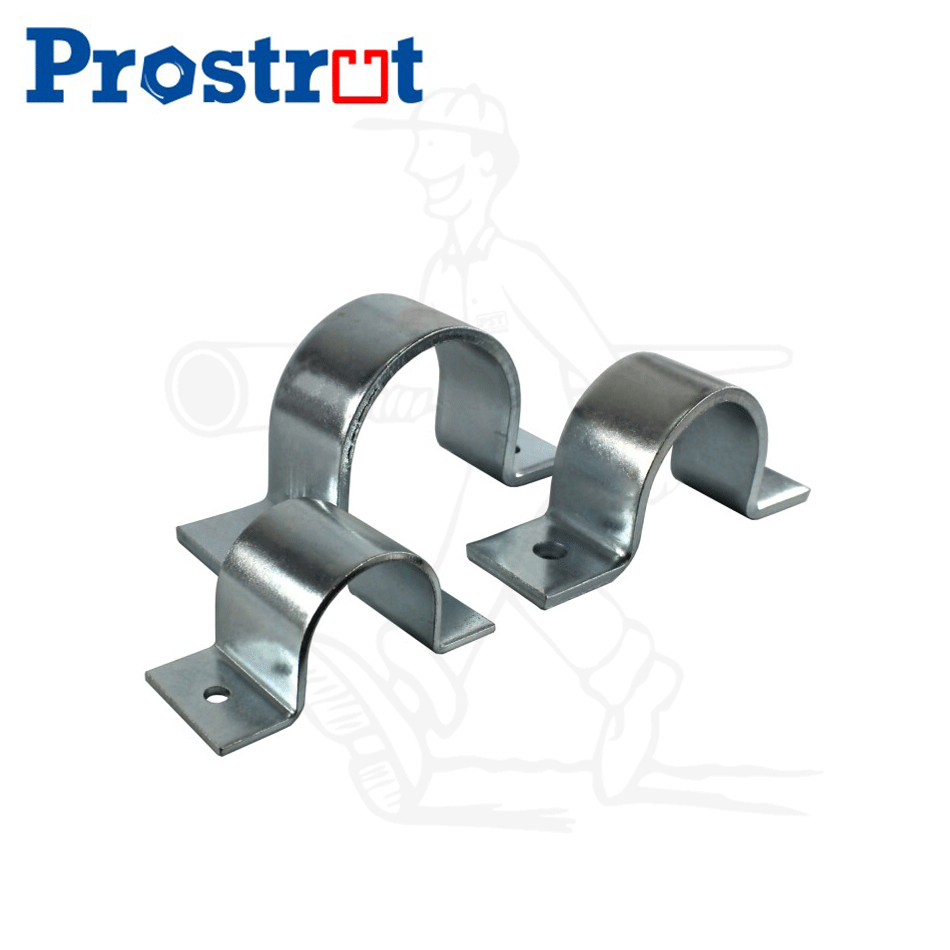

Usage | Designed to connect metal framing channel |
| ITEM | Size mm | O.D MM | Thickness mm | Width mm |
| TSPM-19 | 19 | 19.00 | 3.00 | 25.00 |
| TSPM-21 | 21 | 21.00 | 3.00 | 25.00 |
| TSPM-25 | 25 | 25.00 | 3.00 | 25.00 |
| TSPM-27 | 27 | 27.00 | 3.00 | 25.00 |
| TSPM-32 | 32 | 32.00 | 3.00 | 25.00 |
| TSPM-34 | 34 | 34.00 | 3.00 | 25.00 |
| TSPM-38 | 38 | 38.00 | 3.00 | 25.00 |
| TSPM-43 | 43 | 43.00 | 3.00 | 25.00 |
| TSPM-48 | 48 | 48.00 | 3.00 | 25.00 |
| TSPM-51 | 51 | 51.00 | 3.00 | 25.00 |
| TSPM-60 | 60 | 60.00 | 3.00 | 25.00 |
| TSPM-64 | 64 | 64.00 | 3.00 | 25.00 |
| TSPM-73 | 73 | 73.00 | 3.00 | 25.00 |
| TSPM-76 | 76 | 76.00 | 3.00 | 25.00 |
| TSPM-89 | 89 | 89.00 | 3.00 | 25.00 |
| TSPM-114 | 114 | 114.00 | 3.00 | 25.00 |
