Hangzhou Prostar Enterprises Ltd.

Material	Steel Q195
Finish	HDG
Standard	UL 1242
Thread	NPT
Size	1/2" to 4"

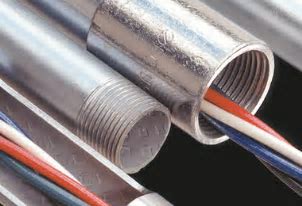

Usage	IMC is precision manufactured for economical protection and long lasting value for the electrical raceway system.

Contact Supplier

Product Details

Trade Size designator		Nominal outside Dia.		Nominal Wall Thickness		Length
U.S.	Metric	in.	mm	in.	mm	ft.	mm
1/2"	16	0.815	20.70	0.078	1.98	10	3050
3/4"	21	1.029	26.10	0.083	2.10	10	3050
1"	27	1.290	32.77	0.093	2.35	10	3050
1-1/4"	35	1.638	41.59	0.095	2.42	10	3050
1-1/2"	41	1.883	47.82	0.100	2.54	10	3050
2"	53	2.360	59.93	0.105	2.67	10	3050
2-1/2"	63	2.857	72.57	0.150	3.81	10	3050
3"	78	3.476	88.29	0.150	3.81	10	3050
3-1/2"	91	3.971	100.86	0.150	3.81	10	3050
4"	103	4.466	113.44	0.150	3.81	10	3050

Specifications reference: UL 1242 ANSI C80.6

Marking

Declaration

Warning:

EMT IMC Rigid Conduit with UL listed should be Hot dip galvanized,all Pre-galvanized or Electro-galvanized Pipes can't pass UL testing pls note.

EMT IMC Pipe bending should be standard thickness

If the thinner type Pipe bending will be wrinkled or broken.

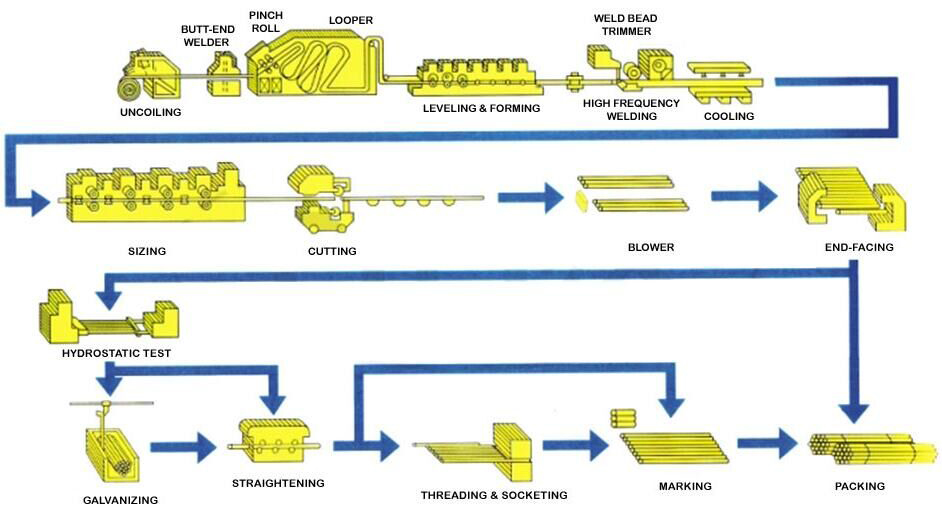

Process Flow Chart
