Material | Steel Q195 |
Finish | Pre-galvanized |
Standard | ANSI C80.6 |
Thread | NPT |
Size | 1/2" to 2" |

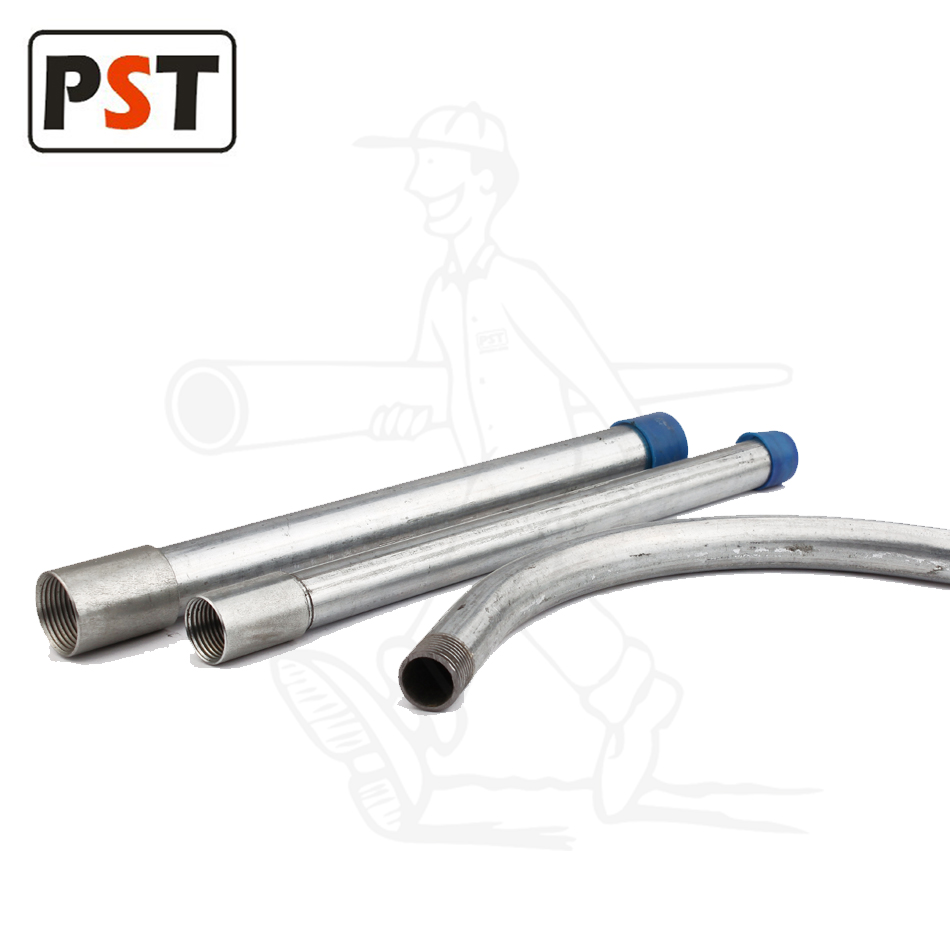

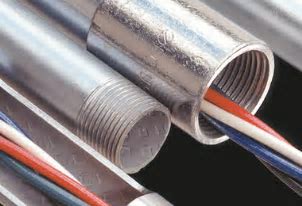

Usage | IMC is precision manufactured for economical protection and long lasting value for the electrical raceway system. |
Model | Trade Size designator | Nominal outside Dia. | Nominal Wall Thickness | Length | ||||
| U.S. | Metric | in. | mm | mm | mm | |||
| IMC-050 | 1/2" | 16 | 0.815 | 20.70 | 1.79 | 3000 | ||
| IMC-075 | 3/4" | 21 | 1.029 | 26.10 | 1.90 | 3000 | ||
| IMC-100 | 1" | 27 | 1.290 | 32.77 | 2.15 | 3000 | ||
| IMC-125 | 1-1/4" | 35 | 1.638 | 41.59 | 2.16 | 3000 | ||
| IMC-150 | 1-1/2" | 41 | 1.883 | 47.82 | 2.29 | 3000 | ||
| IMC-200 | 2" | 53 | 2.360 | 59.93 | 2.41 | 3000 | ||
Marking
