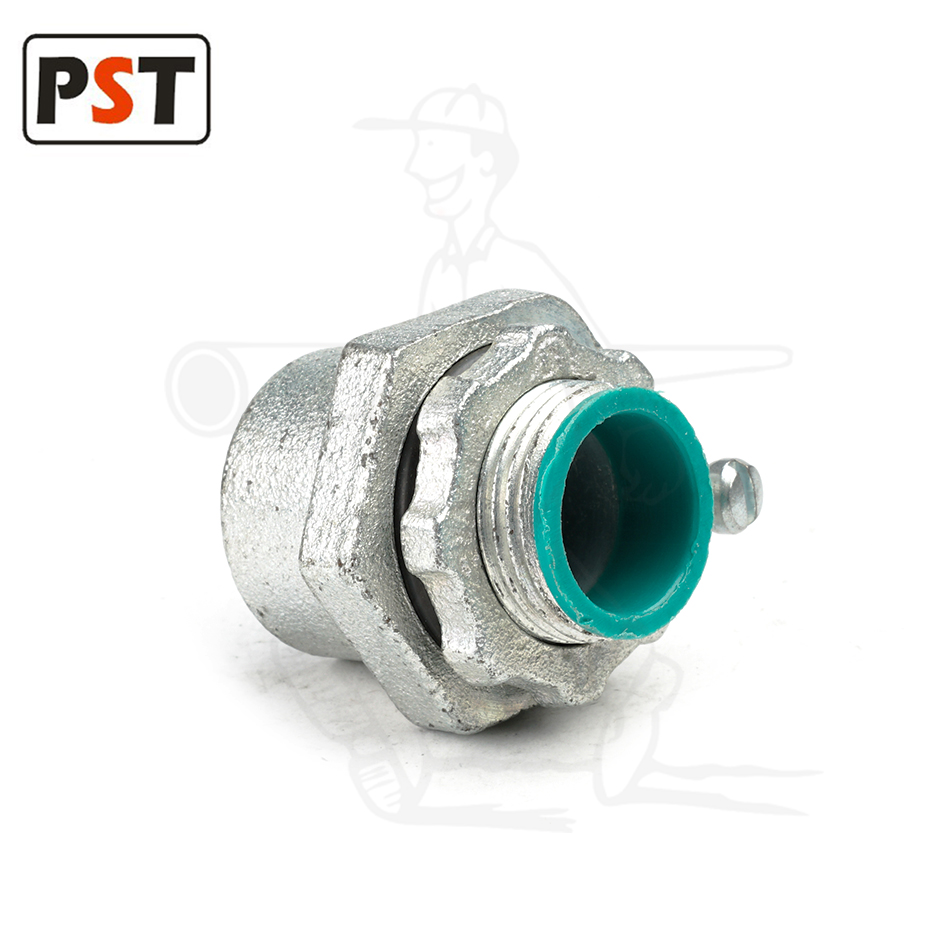

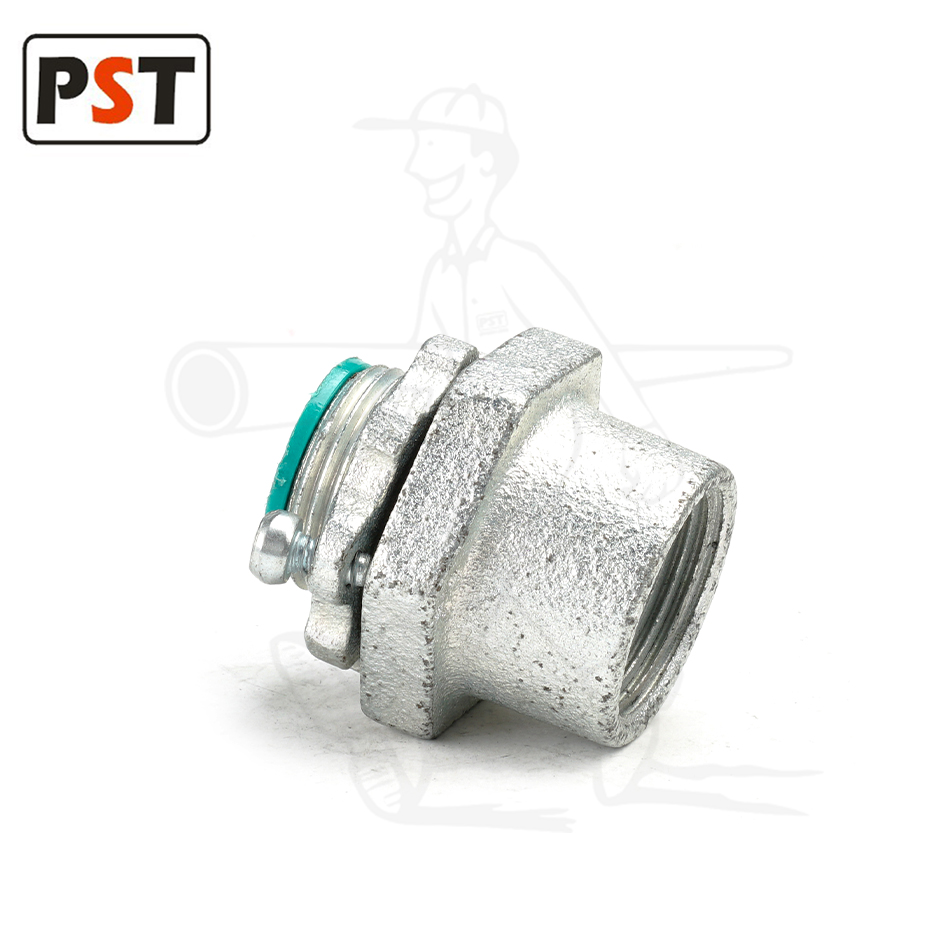

Material | Malleable Iron |
Finish | Galvanized |
Type | Insulated |
Standard | UL 514B |
Thread | NPT |
Size | 1/2" to 6" |
Usage | Connect rigid or IMC conduit to a load center or other metal enclosure where a weather-tight joint is required |
| Cat.No. | Size | Material |
| MHB-50I | 1/2" | Malleable Iron |
| MHB-75I | 3/4" | Malleable Iron |
| MHB-100I | 1" | Malleable Iron |
| MHB-125I | 1-1/4" | Malleable Iron |
| MHB-150I | 1-1/2" | Malleable Iron |
| MHB-200I | 2" | Malleable Iron |
| MHB-250I | 2-1/2" | Malleable Iron |
| MHB-300I | 3" | Malleable Iron |
| MHB-350I | 3-1/2" | Malleable Iron |
| MHB-400I | 4" | Malleable Iron |
| MHB-500I | 5" | Malleable Iron |
| MHB-600I | 6" | Malleable Iron |
Galvanized conduit fittings should be stored in dry conditions to prevent the build up of white rust (wet storage stain). Should this occur, it can be removed and is unlikely to affect the conduit fittings resistance against corrosion
